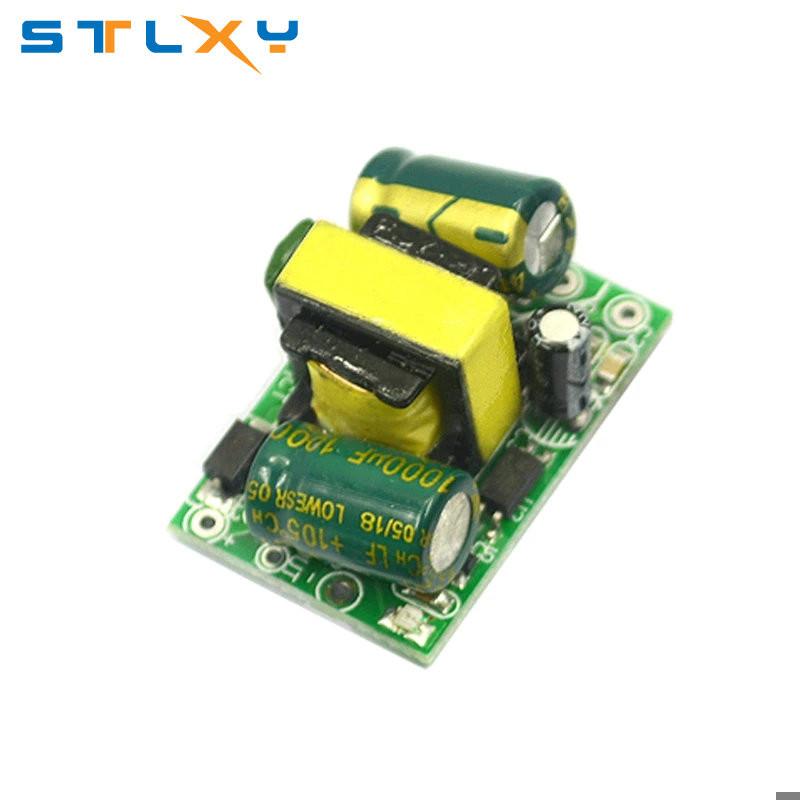

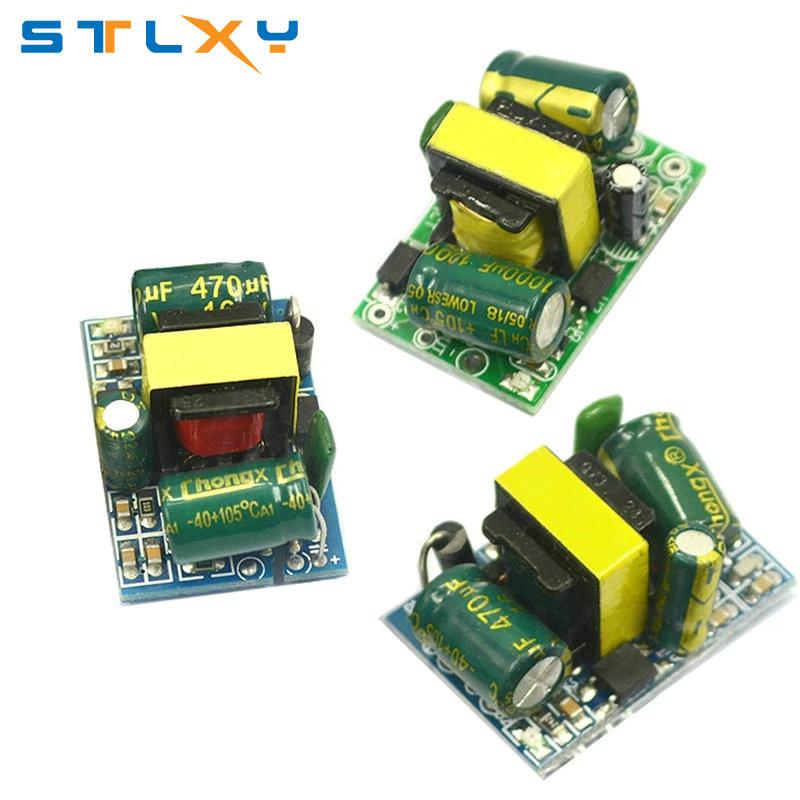

AC-DC Step Down Converter AC 220V to DC 5V 3.3V 12V 700mA 400mA 3.5W Precision Power Module

Use : Inverter Type : Power Supply EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc Rated Capacity : 40-1000VA（include40VA） High-concerned chemical : none is_d : Yes Output Current : 0-1A Model Number : 3.3V700MA /5V700MA / / 12V450MA Output Frequency : 3.5W/ 5W Brand Name : Stlxy Output Type : SINGLE Origin : Mainland China Certification : NONE

5V 700mA:Step Down ModuleCondition: NewWith temperature protection,over current protection and short circuit protection,high and low voltage isolation,AC85 ~ 265 v wide voltage input,ac/dc current,431 precision voltage stability DC5V outputInput voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 vImput current: 0.0273A(AC110V) 0.014A(AC220V)Input Inrush Current: 20AOutput voltage: DC 5V (+ / - 0.2 V)Output current 700 mAPower 3.5 WOperating temperature -20~60°Relative humidity 40-90%RHOutput 5V,min current 0a,max current 700mA,peak current: 800mA,output range: 4.8~5.2v,ripple wave: 60mVOutput power:0-4W(DC current)Output efficiency: 80%Switch machine overshoot: MAX 10%Output voltage rise time: MAX 100MSOutput over voltage: 4.8-5.2V,recovery:Lock,restart after recoveryOutput over power protection:YES,recovery:Lock,restart after recoveryShort-circuit protection: YES,automatic recovery after problem solvedTemperature protection: YES,recovery:Lock,restart after recoveryOvercurrent protection: YES,recovery:Lock,restart after recoverySize: 29.89 x 20.57 x18mm 12V 450mA：-The power supply for whole isolation type industrial-grade built-in power supply module,temperature protection,over current protection and short circuit protection,AC 85 ~ 265v wide voltage input,431 precision voltage,DC12V output,small size,stable performance,cost-effective-input voltage of AC85 ~ 265v 50/60 HZ-Output voltage DC12V (±0.1V)-Output current 450MA-Power 5W 3.3V 700MAInput voltage: Ac85-265V 50/60HZ or DC100v-370vOutput voltage: Dc3.3V (+0.2V)Output current: 700 mAPower: 3.5WSmall Current: Limit 0 AHigh Current: Limit 700 mAPeak current: 800 mAOutput Voltage Range 3.1-3.5VRipple: 60mV
