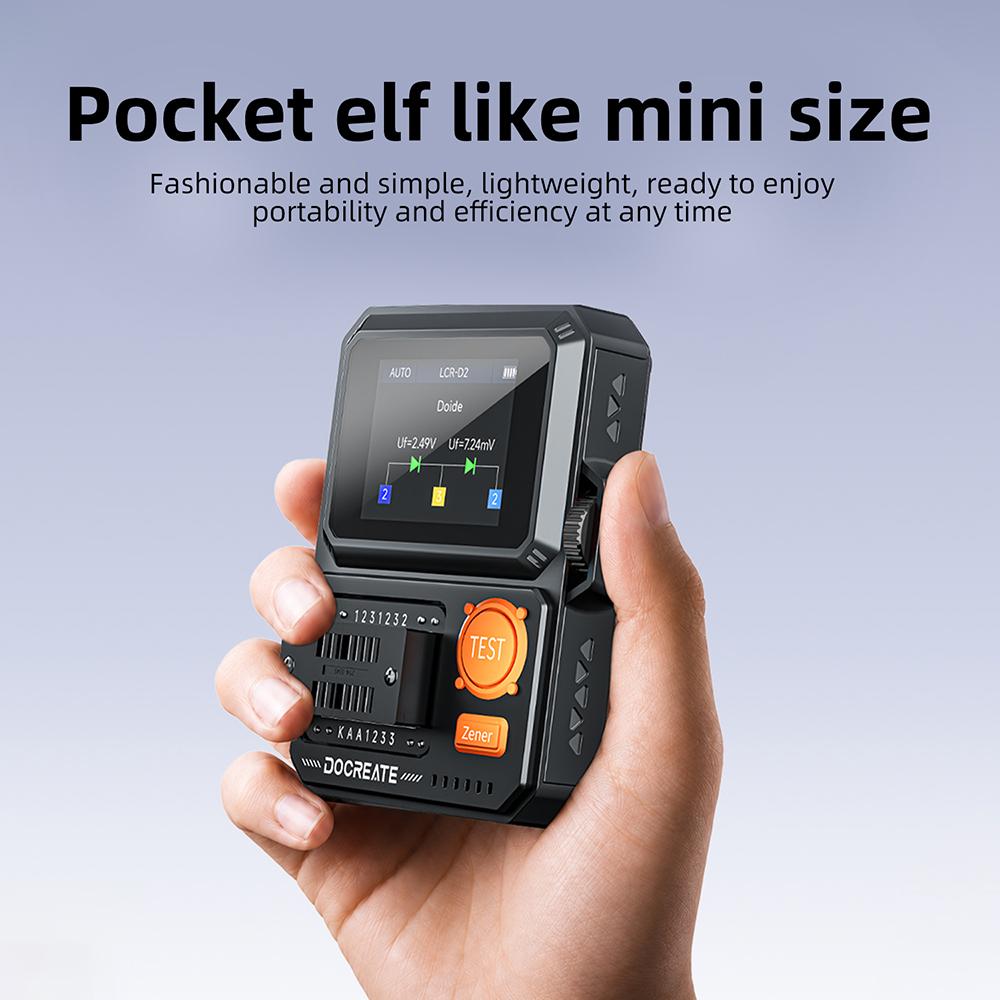

LCR-D2 Transistor Tester Diode Triode Transistor Capacitance Meter Resistance LCR ESR inductance Meter Multifunctional Tester

Semi-finishedproduct : No Battery Included : Yes High-concerned chemical : none Data Record : No Is Smart Device : no Operating Mode : Auto Range Measuring Capacitance Range : 25pF-100mF Operating Temperature : 0 - 40 ℃ DIY Supplies : Electrical Measuring Resistance Range : 0.01-50MO Certification : CE Origin : Mainland China Model Number : LCR-D2 Measuring Inductance Range : 0.01mH-100mH Brand Name : Aideepen DC Current : 90mA AC Current : 90mA DC Voltage : 5V Display Type : Digital Display AC Voltage : 5V

LCR-D2 Transistor Tester Diode Triode Transistor Capacitance Meter Resistance LCR ESR inductance Meter Multifunctional Tester Features: 1.Replaceable patch socket for flexible measurement: The replaceable patch socket easily accommodates various surface-mount components, making testing more convenient and efficient. 2.Self-test (calibration): Short-circuit the 123 interfaces in the transistor test area, press and hold the test button for 3 seconds to initiate the self-test procedure (the zener diode test area remains in an open connection state) 3.Ir infrared decoding test: Supports nrc infrared signal decoding for remote control testing, with corresponding infrared waveform display (nec protocol only) 4.Auto mode: Switch the mode to auto, and the device will automatically identify the component type. Press the test button briefly to start testing (capable of testing transistors, regular diodes, capacitors, inductors, resistors, etc.) 5.Manual mode: Rotate the encoder wheel to switch between component types for measurement. The corresponding icon will be displayed on the screen. Then, briefly press the test button to start testing. 6.Widely applicable, meeting diverse testing needs: Product development, home appliance repair, educational institutions, scientific research, etc Parameters: Product model: lcr-d2 transistor tester Display screen: 1.44 inches Battery capacity: 400mah lithium battery (built-in lithium battery) Charging specifications: usb type-c, 5v/1a Working current: 90ma (non-stabilized mode) / 150ma (stabilized mode) Product dimensions: 90x70x19 mm Precautions (1)when testing a capacitor, it must be discharged before testing to avoid potential damage to the equipment; (2) do not use the device to test batteries, as it may damage the equipment; (3) after powering on, during non-testing processes, the test interface remains in a conductive state, and battery insertion is prohibited at this time; (4) the component parameters are out of the testing range, and the test results may indicate incorrect component types; (5) the device can only drive components with voltages below 5v; (6) this device contains a lithium-ion battery. Do not dispose of it in fire to avoid hazards; (7) when in use, avoid subjecting the device to violent impacts, drops, or water exposure. If water enters accidentally, allow it to dry completely before attempting to power it on, as failure to do so may damage internal components.   Package include: Transistor tester * 1 Instruction manual * 1 Type-c usb data cable * 1 Smt test version * 1 Test hook * 3 F3mm diode * 1 Tcj8 dupont terminal head * 1 10uf electrolytic capacitor * 1 label:yes
