ESP32-H2 Microcontroller Development Board ESP32-H2-DEV-KIT-N4-M Module Support BLE 5 /Zigbee/Thread Wireless Communication

High-concerned chemical : none Package : TQFP Application : Computer Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

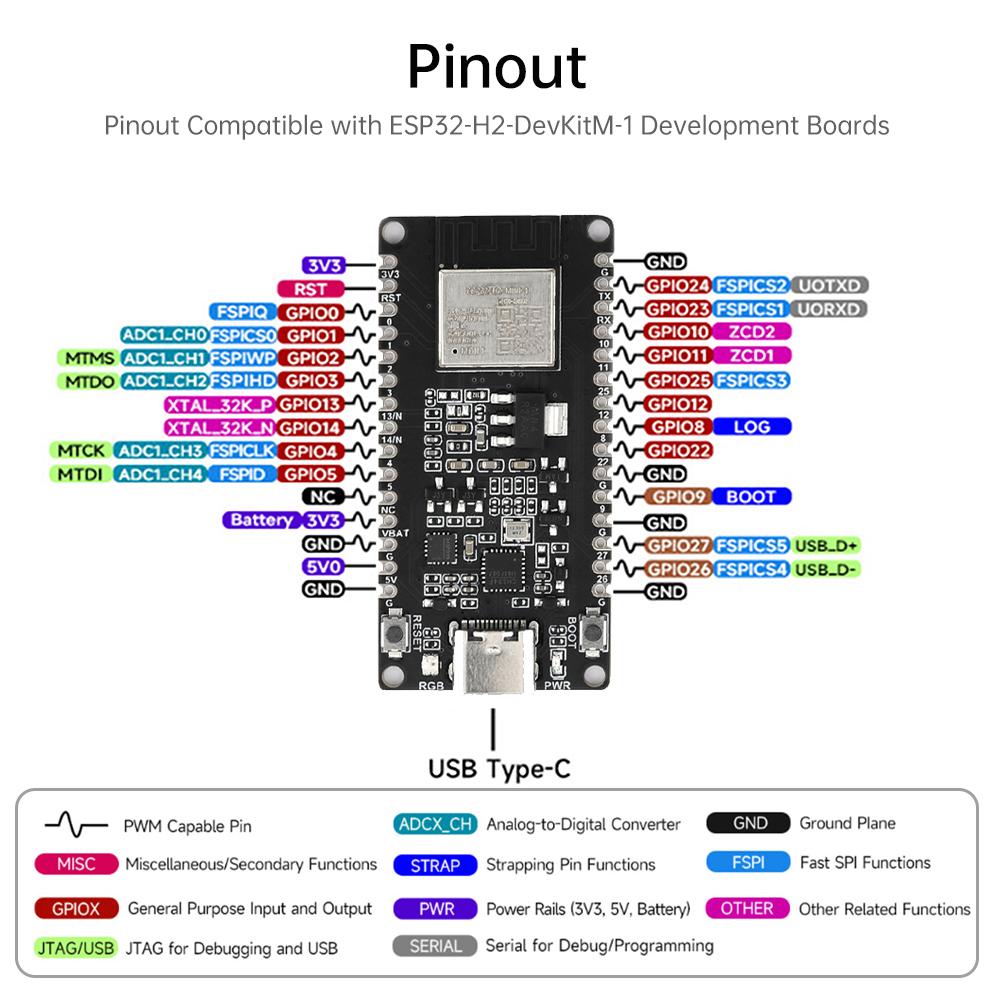

Features: 1. Adopting ESP32-H2-MINI-1-N4 module, equipped with RISC-V 32-bit single core processor, with a main frequency of up to 96MHz, and built-in 4MB Flash memory 2. Integrated BT 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance 3. Adopting USB Type-C interface, no need to worry about front and back insertion 4. The onboard CH343 and CH334 chips can meet USB and UART development and usage requirements through a Type-C interface 5. Introduce rich peripheral interfaces, pin compatible with ESP32-H2 DevKitM-1 development board, strong compatibility and scalability 6. Stamp hole design, which can be directly welded and integrated into the user's self-designed bottom plate Product features: ESP32-H2-DEV-KIT-N4 is an entry-level RISC-V microcontroller development board that integrates BT 5 and IEEE 802.15.4 (Zigbee3.0 and Thread). It is compact, powerful, and has rich peripheral interfaces, which can be used in smart homes, industrial automation, healthcare, consumer electronics, and other fields. On the hardware side, the ESP32-H2-MINI-1-N4 module is used, which is equipped with a RISC-V 32-bit single core processor, supports up to 96MHz main frequency, built-in 4MB Flash, and integrates a variety of peripheral interfaces including SPI, UART, I2C, I2S, LED PWM, ADC, etc; It also has dual chips of CH343 serial port and CH334 USB HUB on board, which can be used and developed for USB and UART through a USB-TYPE-C interface. The pin interface is compatible with the ESP32-H2 DevKitM-1 development board and can be used to expand various peripheral devices, making it more convenient to use. On the software side, you can choose the official ESP-IDF development environment for development, providing relevant sample programs and tutorials to facilitate users to quickly get started with development and apply it to products Parameter: Interface: Type-C interface Processor: RISC-V 32-bit single core processor, supporting up to 96MHz main frequency Flash: 4MB BT: Supports BLE 5, supports BT 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread), and its low-power BT subsystem supports BT 5 (LE) and BT Mesh Size: 51.6 * 25.4mm Package include: 1X development board 1X40PIN Headers (optional for non soldered pins and soldered pins) label:yes
