4000W 220V High Power Voltage Regulators SCR Speed Controller Electronic Voltage Regulator Governor Thermostat HR

EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Model Number : 4000W Current Type : DC Brand Name : Stlxy Origin : Mainland China

Description:

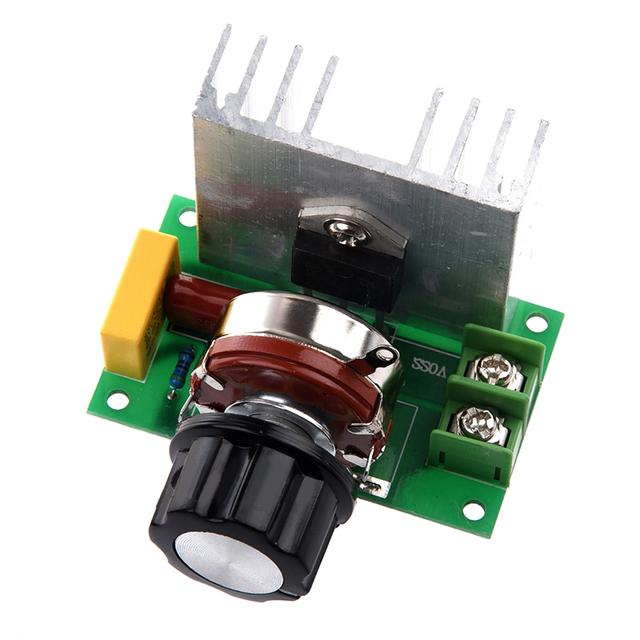

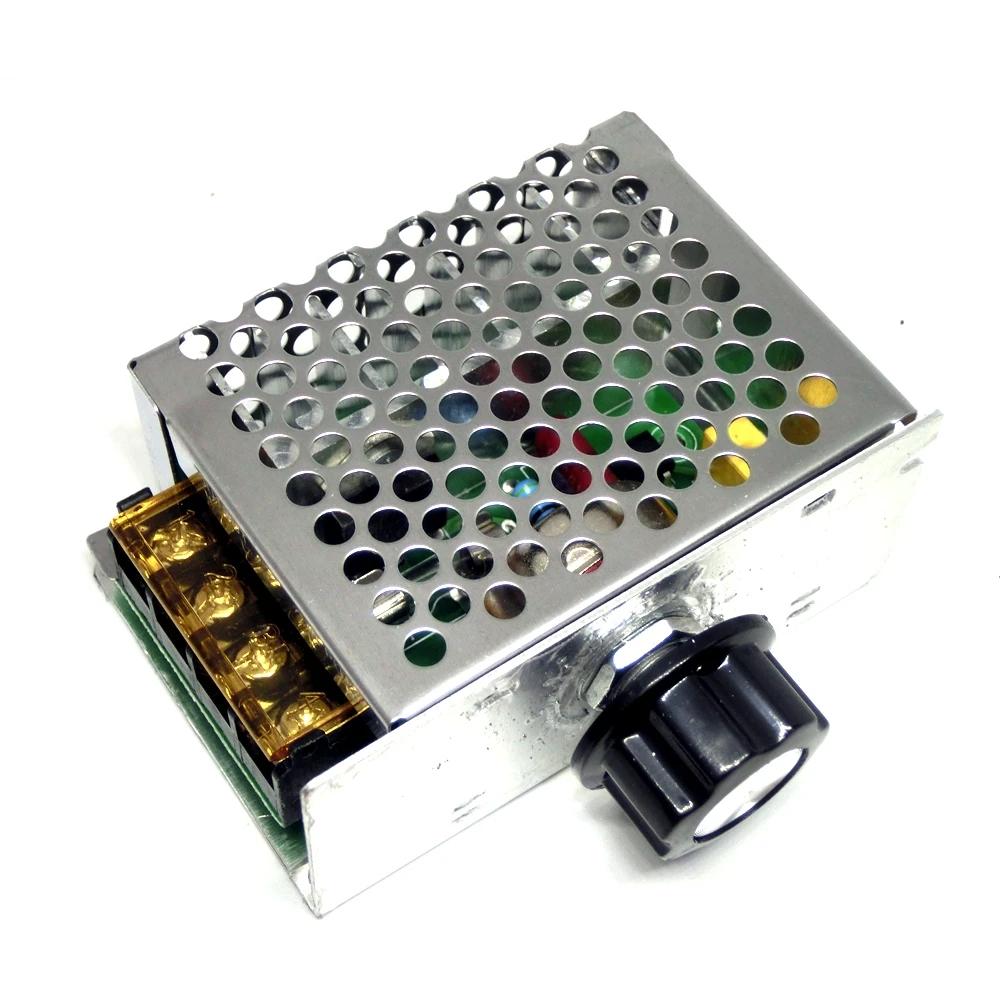

Special design with 1.6 thick FR - 4 high temperature resistant circuit board. It is safety and reliable to cope with large current. Double capacity design: Safety capacitor and Metal film capacitor to protect SCR more effective.More efficiency and more safety.1.5 thick aluminum and stainless steel case,more suitable for family temperature control or speed control and industrial enterprises to use.Beautiful and easy,safe,convenient,high quality products. It will not rust after long time using.Mainly fit for the resistive loads,eg. lights. It also works with the single phase brushed motor which the max power can NOT be over the 1/3 of 40000W. Specifications:

Voltage range:10V-220Vmaximum power: 4000w Net Weight: 41.8g Working voltage: AC 220V Radiator fin size: 48 x 35 x 30mm Package Included:

1 x AC 220V 4000W High Power SCR Speed Controller Electronic Volt Regulator Motor Governor Dimmer Module for Thermostat Dimming Description: The new component assembly 4 Terminals,220V into 10-220V adjustable output,Be sure to take the load transfer Mainly used:Thermostat,Dimming,Governor(Heating pipe,Heating wire,Heating plate,Heating rods,Baisi bulb,Fan,EAF,Solder furnace,Table lamp) and so on. The regulator be suitable for 220V AC electrical,can be used to dimming,voltage regulator,thermostat,speed and other purposes. I t can also arbitrarily adjust the output voltage between 0-220V,and can be used for 4000 watts or less electrical appliances. Electrical parameters: Voltage: AC 220V Maximum power: 4000W Voltage Regulator: AC 10-220V Size:91*59*34mm Thyristor current: 20A(Max) Radiator: 5 thick corrugated surface aluminum radiator Resistance: Full metal film,precision power resistors Product Name: 4000W AC voltage regulator

Size: length： (L*W*H): 85*55*38mm / 3.3 * 2.2 * 1.5 inches,knob hole 6mm.

Maximum power: 4000W (resistive load limit power),long time should be reduced power use. Long time resistance load recommended within 2000.

Efficiency: more than 90%

Working voltage: AC 220V

Adjust the voltage: AC 0-220V

Voltage adjustment range: AC 0-220V,Resistive load conditions,starting a dozen volts,callback can be 0 Note that the load must be connected before it can be regulated SCR is mainly used for resistive load (electric wire incandescent lamp,etc.),single-phase AC motor can also be,but not guaranteed can,other types of load,please confirm by yourself Fuses are not omnipotent,there is reaction time,if the current is too large,in addition to burning the fuse,the module may also burn out. Specification:

Brand new

Material: metal

Size: as shown in picture

Maximum power: 4000 W (resistive load connected)

Voltage regulation: AC 0-220 V,starts from AC 10 V

Protection: anti-peak,surge,RC absorption (EOC)

Stable and durable.

Used in electric furnace,water heater,lamps,small motor,electric iron etc. How to Use:

The input is connected with the AC 220V.

Output wire is connected to the electric cooker or appliance motor.

Turn the knob for speed,voltage,temperature control. Package included:

1 x Voltage Regulator

1 x Power Regulator label:yes
