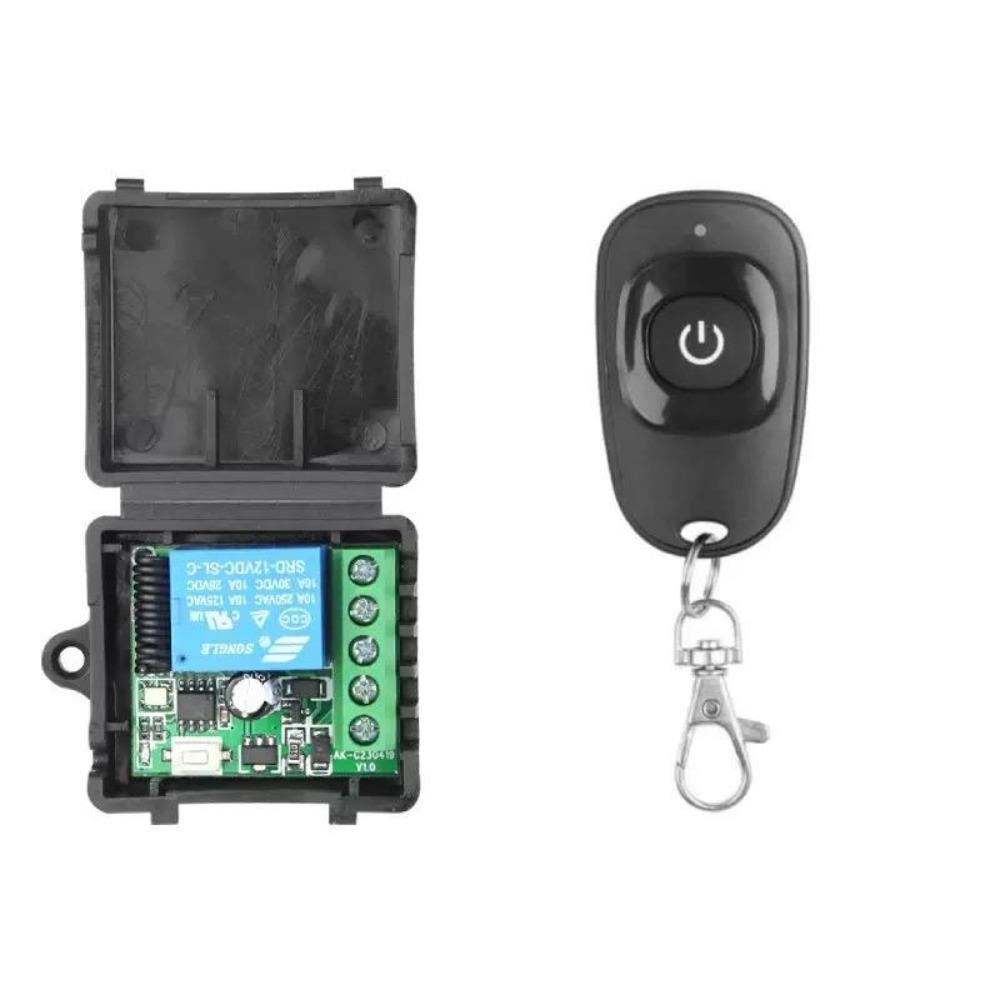

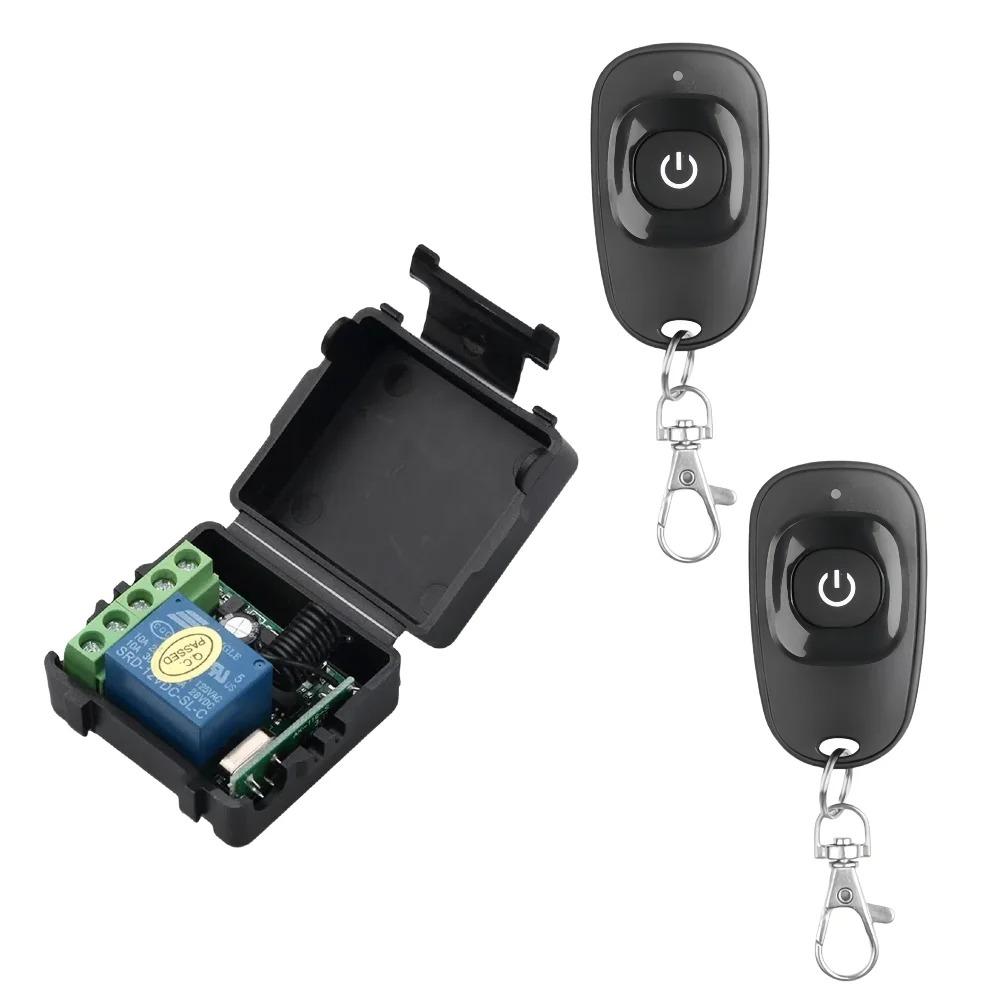

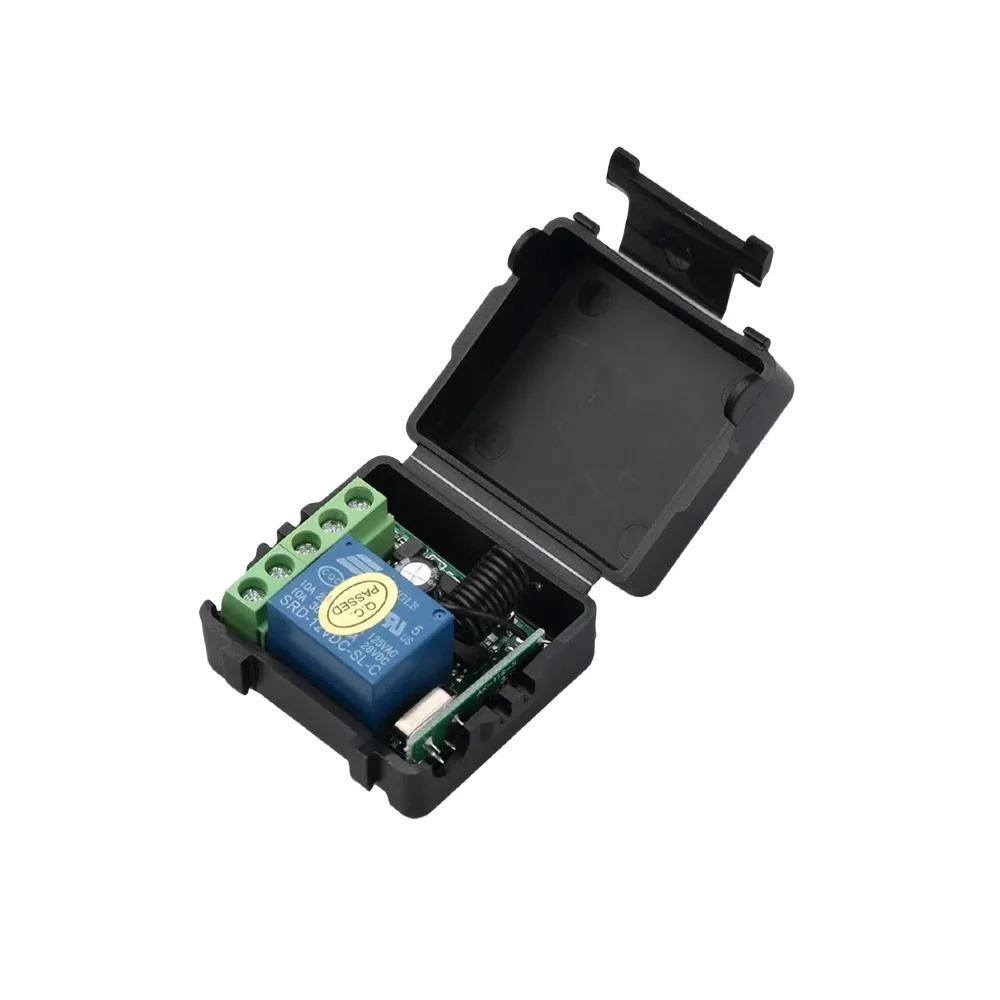

433Mhz Universal RF Remote Switch DC12V 1CH 10A Relay Receiver EV1527 Code Transmitter For Electromagnetic Door Lock LED DIY

Form-factor : Others High-concerned chemical : none Support APP : No Frequency : 433 MHz Channel : 1 Package : Yes Model Number : 433Mhz Universal Wireless Remote Control Wireless Communication : RF Use : Universal,Lighting,Electric Door,Automated curtains,Switch Origin : Mainland China Certification : NONE FEATURE1 : 433mhz rf remote switch FEATURE2 : 1ch 10a relay receiver FEATURE3 : EV1527 remote transmitte FEATURE4 : DC12V wireless relay module FEATURE5 : electromagnetic door lock controller FEATURE6 : universal rf remote control FEATURE7 : DIY automation switch FEATURE8 : rf learning code receiver

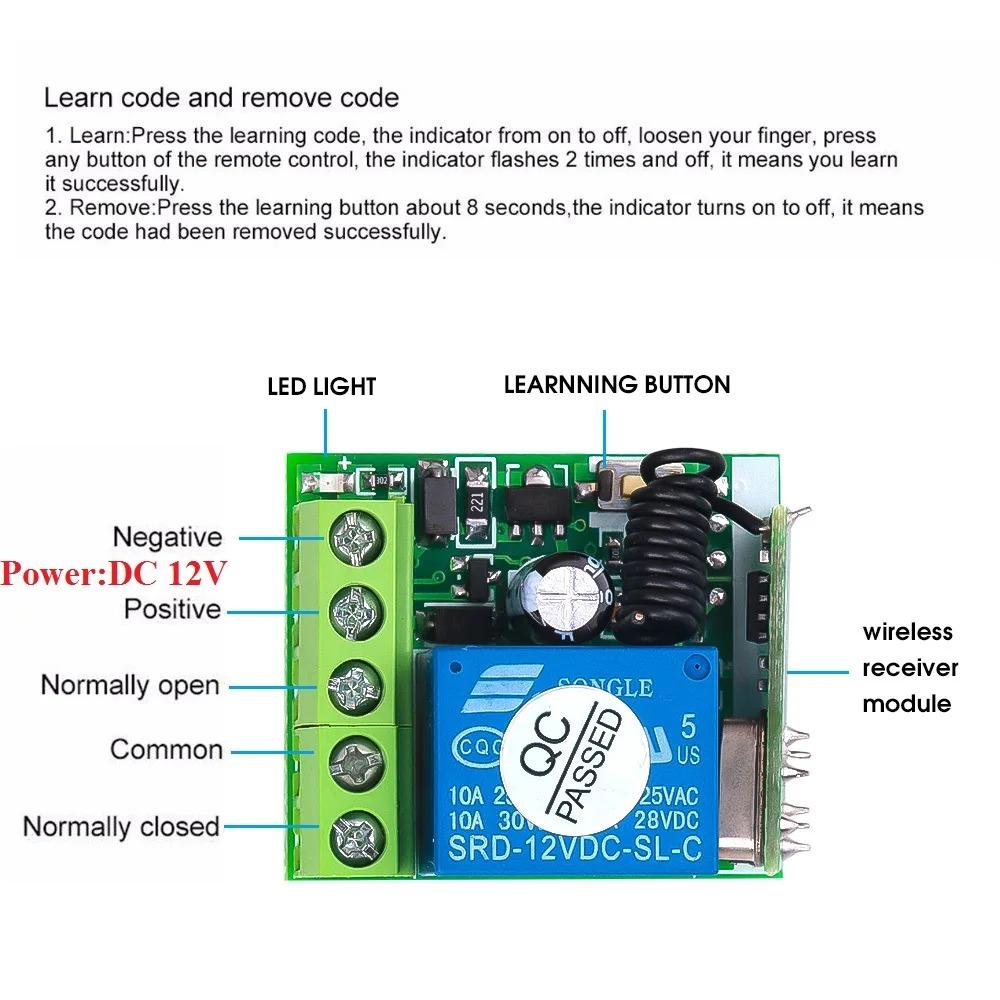

Input Voltage: 12 V• Receiver sensitivity: > 97 dbm • Transmitting distance:> 100 m ( open space) • Decoding mode: MCU software decoding • Remote storage: 20 • Support remote type: EV1527 learning code • Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s ) • Output terminal: NO , NC , COM • Remote control battery: 2 x 3 V CR2016 button batteries Note: Maximum input power is 250 V

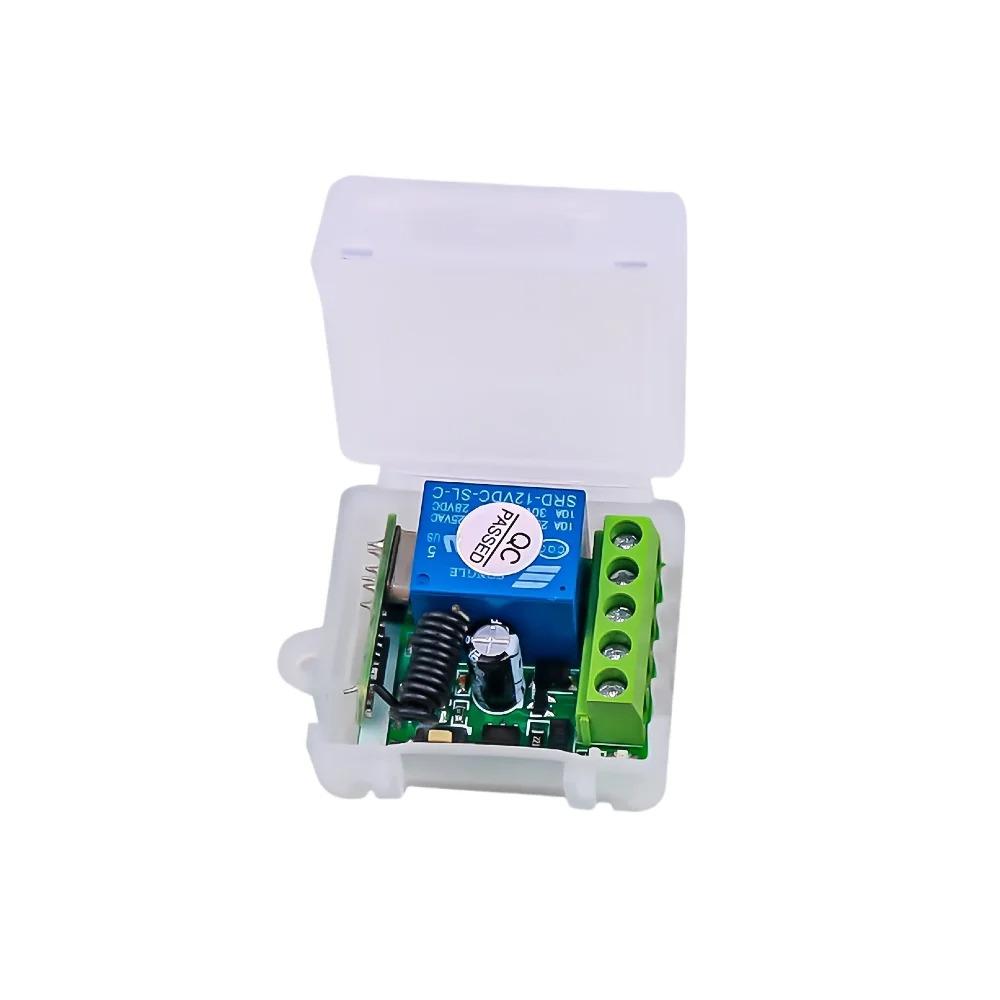

• Universal Gate Remote Control :This 433 Mhz remote control is designed to be a universal solution for gate control, ensuring easy and convenient access to your property.• DC 12V 10A Relay Receiver :Equipped with a DC 12V 10A relay receiver, this mini module provides reliable and consistent performance for your gate control needs.• Versatile Application :Not just for gates, this remote control can also be used for controlling LED garages and other home appliances, offering versatility in its usage.• Compact Mini Module Design :Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems.• Long Range Signal :With a strong long-range signal, this remote control ensures effective communication even in challenging environments.  Remote programming -Clearing the code : Push the learning button on the receiver 8 times , the codes will be reset. After clearing the code, remotes will be need to be recalibrated

-Momentary mode Please contact us for detailed use instructions

-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.) Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .

-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.

label:yes

Weight: 40 g
